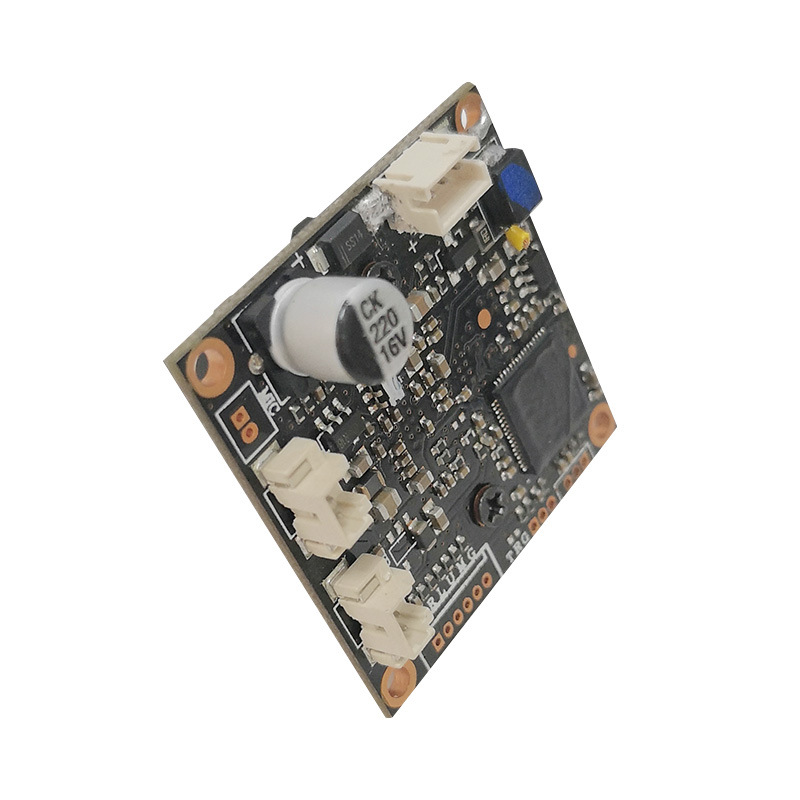

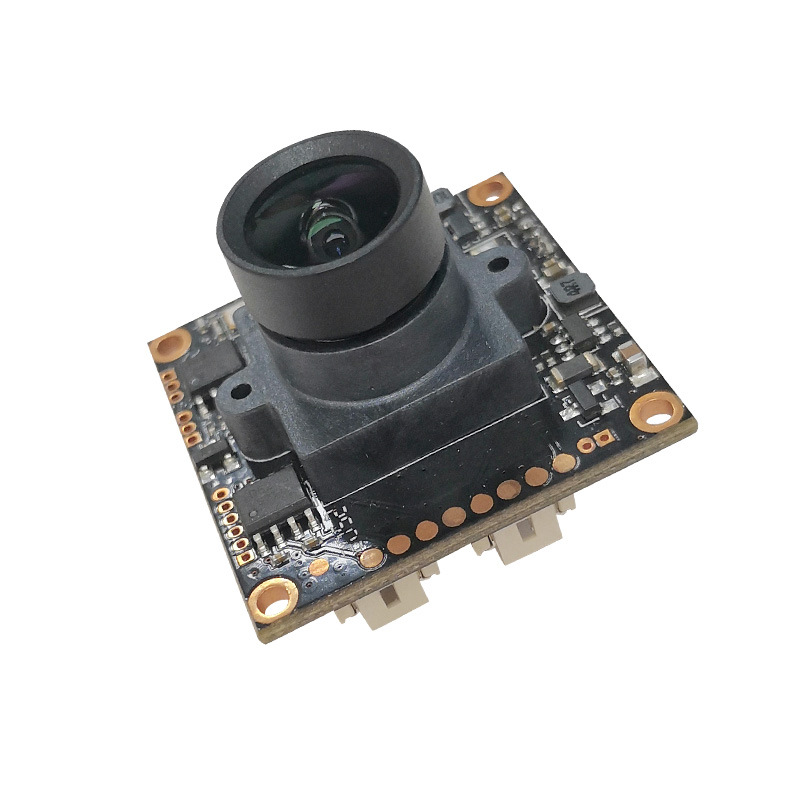

SONY IMX307 coaxial HD camera module supports AHD/TVI/CVI/CVBS switching 1080P wide dynamic starlight level:
Pixels: 2MP 1920 (H) * 1080 (V)
Sensory chip: Sony IMX307 (1/2.8 ") CMOS
Focal length: Customizable
Video output: AHD / TVI / CVI / CVBS switchable
Frame rate: 1080P @ 25fps / 1080P @ 30fps
Features:
Starlight low illumination, 0.001LuX @ (F1.2. AGCON), 0LUX with IR
Four-in-one coaxial high definition output, clear and delicate images
Support IR-CUT switching, CDS external control, to achieve day and night monitoring
OSD menu, suitable for user custom settings (customization)
Adaptive digital noise reduction, 2D-DNR, 3D-DNR
Support super wide dynamic, frame accumulation
Integrated MIC amplification circuit, support MIC input and audio output (customization)
Support UTC coaxial control function
Function introduction:
Face recognition Mobile payment Smart home (visual doorbell, visual phone)
Video conference Drone / sports DV Surveillance equipment (vehicle monitors, remote monitoring)
Dimensions: L * W: 32 * 32mm (customizable)
China Original place | |
Factory Add | China's Guangdong |
Software | |
Drivers | Driver-free (dedicated video recorder) |
Technical data | Product acknowledgement letter |
Resolution division | |
Pixel | 1080P(160-300W) |
