PS. Support for the new various structures, and various pin sequence definition customization.

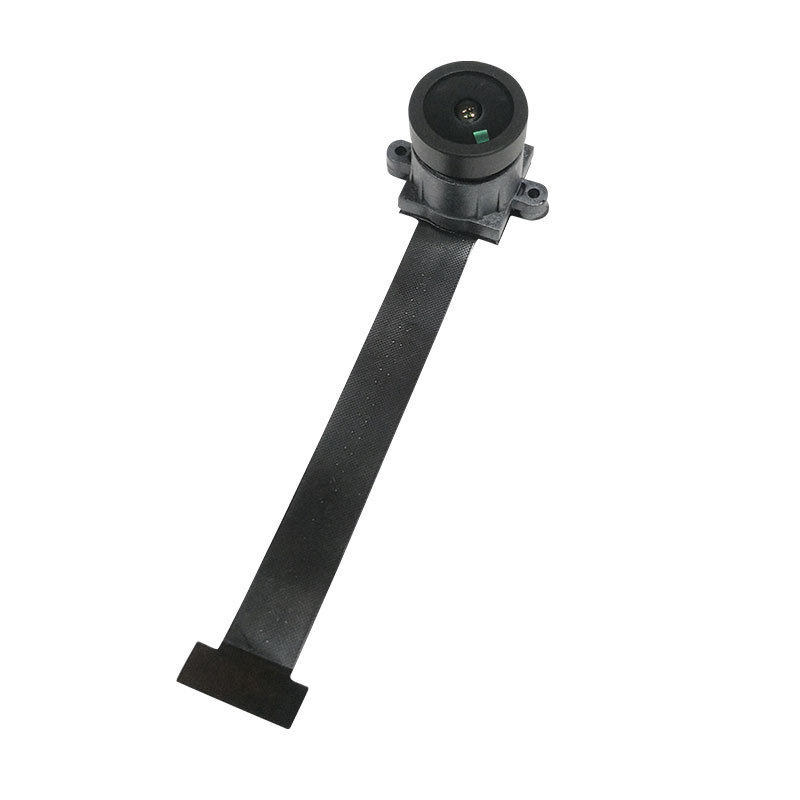

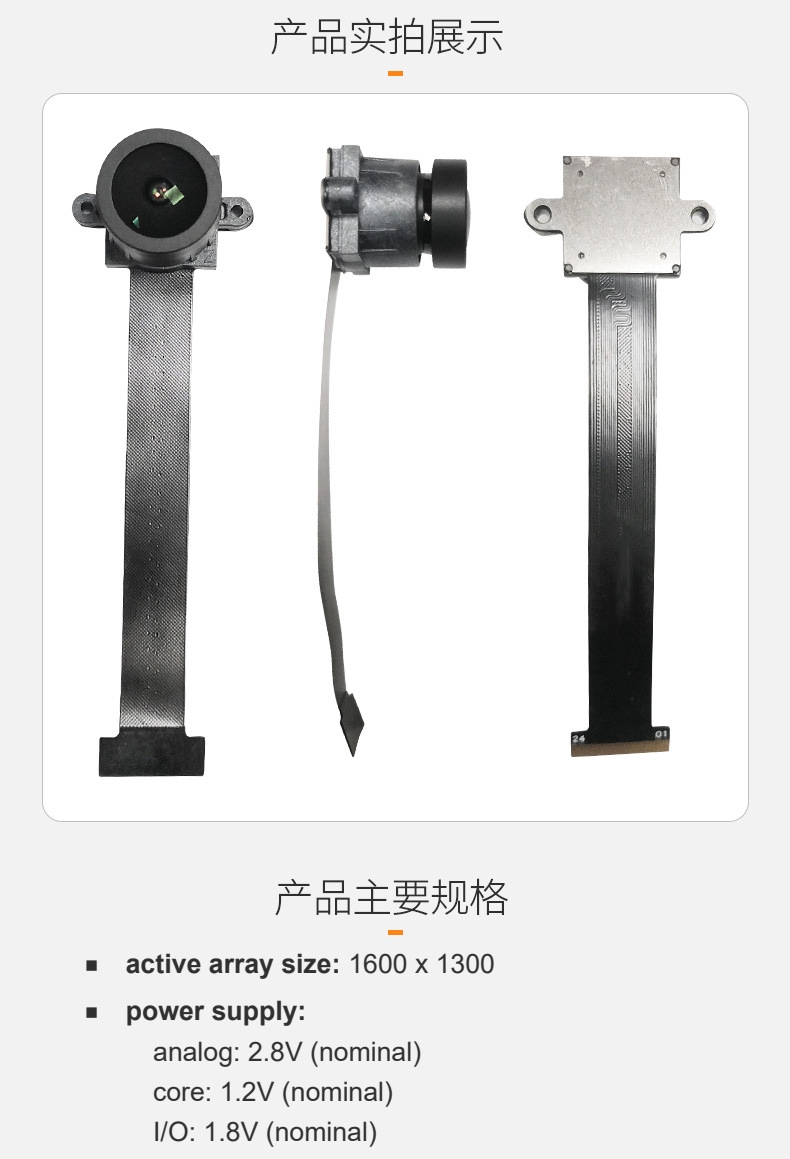

High-definition 2 million global shutter RGB-IR NIR camera module.
High-speed 90 frames per second, driver monitoring system (DMS & ADAS) wide-angle lens is optional.
Product model: WIN-O2312-74MD.
Pixels: 2 million pixels, 26001300.
Sensitive chip: OV2312 (1/2.9 ") CMOS.
Field of view / focal length: The lens can be optional according to the actual application scenario.
Compression format: 10-bit RGB-IR RAW.
Frame rate: 16001300@60FPS, 720P@90FPS.
Functions and applications: industrial / material code scanning, machine vision, unmanned aerial vehicles, obstacle avoidance, hover, VR AR equipment, automotive unmanned driving, in-car monitoring, driver monitoring system, video conferencing.
Interface: MIPI.
Size: L: 74mm (customizable).
China Original place | |
Factory Add | China's Guangdong |
Software | |
Drivers | Master control program |
Technical data | Datasheet+Initial code |
Resolution division | |
Pixel | 1080P(160-300W) |
